上海骏精赛自动化有限公司
|
Cycle speed maximum (with good CN mold) |
Forming adn cutting production cycle of up to 30 cycles/min. Single forming production cycle of up to 35 cycles/min. |
|
设备运转大速度(在使用国内品质好的模具的情况下) |
成型冲切可以达到30周期每分钟,单成型可达35周期每分钟 |
|
Dry cycle speed |
50 cycles/min |
|
空机运行周期 |
50周期每分钟 |
|
|
760x580mm |
|
大成型面积 |
|
|
Forming area minimum |
375x350mm |
|
小成型面积 |
|
|
Closing force (Forming/Cutting station) |
250KN/500KN |
|
闭合力(成型/冲切站) |
|
|
Height of formed part above or below film level |
150mm |
|
成型产品高度，正向/负向 |
|
|
Forming station Top / Bottom table movement |
170mm |
|
成型站上/下工作台移动 |
|
|
Film thickness range (depending on film properties) 膜料 |
0.2-1.8mm |
|
厚度范围（取决于膜料特性） |
1 Integrated forming, punching, stacking, and waste winding station, sheet stock treatment is more smooth, and energy consumption is less.
集成的成型、冲切、堆叠、废料收卷工位，片料处理更顺畅，能源消耗更低。
2 Forming and cutting station use firm cast iron structure, matched with roller bearing's crankshaft to guarantee perfect forming, cutting.
成型及裁切站使用牢固的铸铁结构，配用滚柱轴承的曲臂保证成型,裁切。
3 Forming station with independent servo-plug drive on upper table, gives you more flexible to adjust the process, gets the best products.
成型站上工作台独立伺服马达驱动的辅助拉伸头。可以让您更灵活的调整生产工艺，得到好品质的产品。

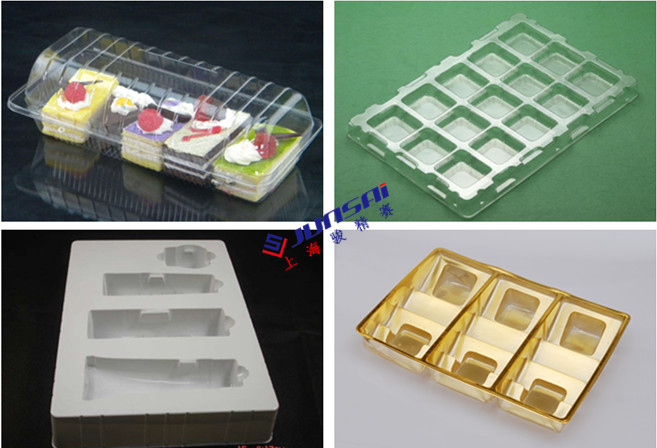

主要适用于PS、HIPS、PVC、PET、PP等塑料片材成型，生产各种盒、碟、托盘、碗、盖等包装制品。如：食品盒、蛋糕盒、快餐盒、糕点托盘、超市托盘、医药针剂托盘、口服液托盘.等
